Iron Sampler Factory Steel Liquid Sampler Injection Molten Iron Sampler for Industry Casting
Certification:CE, ISO
Shape:Round
Color: Brown
Refractoriness: 1580< Refractoriness< 1770
Type: Silicon carbide Crucible
Sample Size: 34mm*10mm/35mm*12mm
Products DETAILS

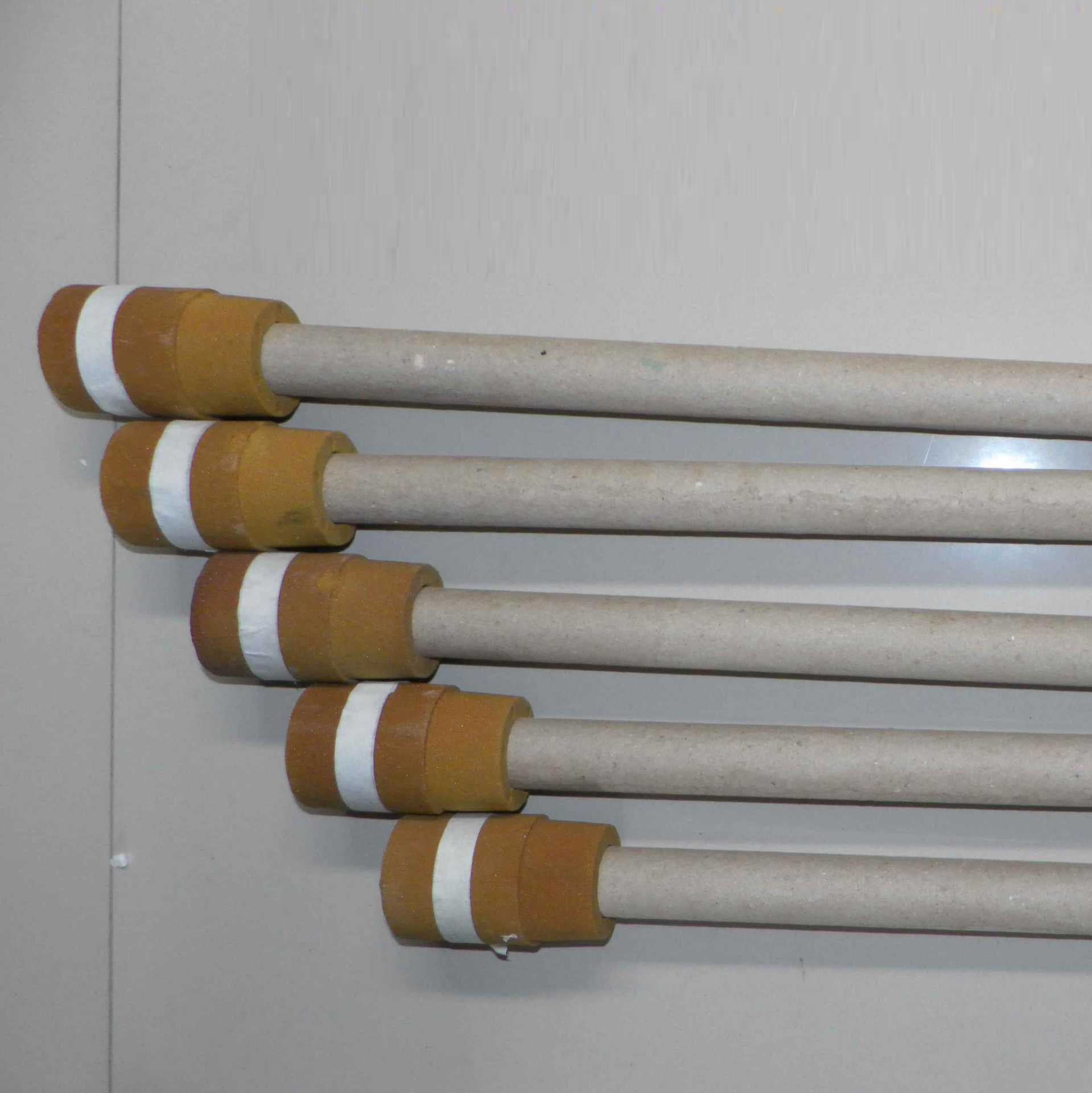

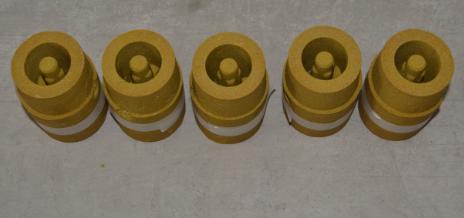

Iron Sampler Factory Steel Liquid Sampler Injection Molten Iron Sampler for Industry Casting
| Name | Model | Sample Shape | Sample Size | Remarks |
| Injection Molten Iron Sampler | QR-TSA-800 | Round | φ34*10 | The thickness of Molten Iron Sampler TSB is between 6-12mm. |
| QR-TSB-800 | φ35*12 |
Main technical parameters:
1. Sampling qualified rate ≥ 98%
2. Steel sample: Intact,dense,smooth,no porosity
Operation:
1. Insert the sampler into the special lance;
2. The slag must be broken first if it is thick or hard;
3. During measurement, the insertion depth is 350mm-400mm, sampling time is 4-5s;
4. The sampler is removed from the molten steel and after cooling, pls lightly knock sampler on the ground, and then take out of the sample.
