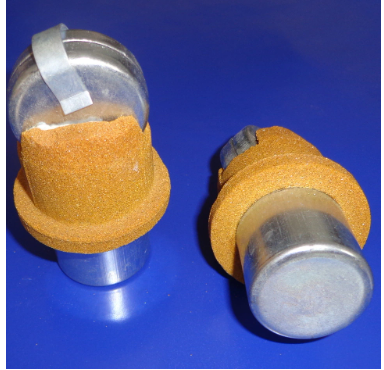

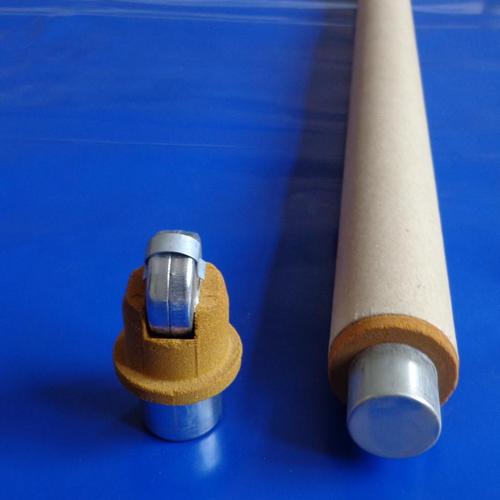

Immersion Round Shape Molten Steel Sampler

Immersion round shape molten steel sampler is a kind of common sampler which is widely used in steel making plants during the production of steel. Workers would know the elements after collecting samples from furnace or tundish by sampler. It is a very useful tool during metallurgical process.

Certification:CE,ISO

Shape: Round

Color: Light Yellow

Refractoriness: 1580< Refractoriness< 1770

Type:Silicon carbide Crucible

Applicable:Molten Steel

Send Email:

sales@lzdn-instrument.com

Products

Products DETAILS

Immersion Round Shape Molten Steel Sampler

Name	Model	Sample Shape	Inter dismeter φ (mm)	Length (mm)	Sample Size	Remarks
Immersion Steel Sampler	QR-342Y/N	Round	7	40	φ34*12	"Y": adding deoxidizer "N": no deoxidizer
	QR-344Y/N	Oval			φ344012
	QR-T32Y/N	Double Thickness			φ326012*4

Sample Size:Diameter 28mm/30mm/32mm/34mm/37mm
Sample Thickness:12mm/14mm/15mm
Paper Tube Length:300-1500mm
Paper Tube Inner Diameter:18mm/37mm/39mm
Analysis:Suitable for Spectral Analysis
Applicable to:Molten Steel
Application Range:Collecting Samples from Convertor,
Electric Furnace, Refining Furnace and Continuous Casting
